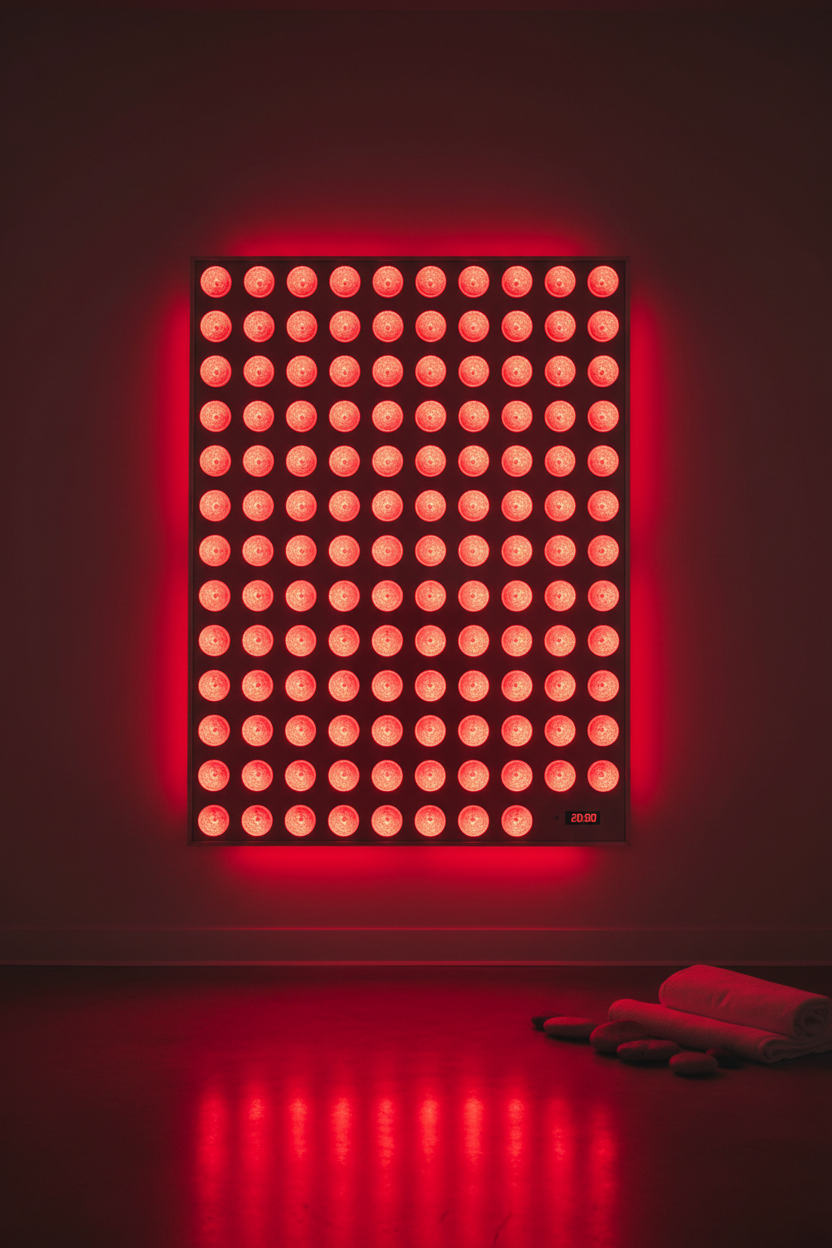

Red Light Therapy Panel Buyers Guide
Share
What to Look for in a Red Light Panel
The red light therapy panel market has expanded rapidly in Australia, but product quality varies enormously. This guide focuses on the technical specifications that determine clinical effectiveness — not marketing claims.
The five most important specifications when evaluating any red light therapy panel:
- Wavelength: Must be within clinically validated ranges (see below)
- Irradiance: Power density at the treatment distance (mW/cm²)
- EMF output: Near-field electromagnetic field levels
- Third-party testing: Spectral verification and safety certification
- Build quality and warranty: LED lifespan, heat management, warranty terms
Wavelengths: The Most Important Specification
Effective red light therapy requires specific wavelengths. The most extensively researched and clinically validated wavelengths are:
- 630–660nm (red): Best studied for skin health, surface inflammation, and wound healing. Penetrates roughly 2–3mm into tissue.
- 810–850nm (near-infrared): Deeper penetration (several centimetres), commonly used for muscle recovery, joint health, and neurological applications.
Most quality panels combine both red and NIR wavelengths. The most common effective combinations are 660nm + 850nm, or 630nm + 810nm. Panels emitting wavelengths outside these validated ranges (e.g., 700nm, which falls in a relatively ineffective gap between red and NIR) should be viewed with caution.
Reviews of photobiomodulation describe an approximate therapeutic optical window for red and near-infrared light — roughly 600–1100nm — within which light penetrates tissue most effectively (de Freitas & Hamblin, 2016; Hamblin, 2017). This is also the wavelength range used across the randomised trials pooled in a systematic review and meta-analysis of tendinopathy (Tripodi et al., 2021). These wavelength–application pairings reflect how red and near-infrared light are absorbed and how far they travel into tissue rather than proof of a fixed outcome: the clearest randomised-trial evidence to date is for pain and function — for example in tendinopathy (Tripodi et al., 2021) and chronic pain (Ferreira et al., 2026) — where benefits are reported but dosing protocols remain heterogeneous. For a deeper explanation of wavelength science, see: Red Light Therapy Explained.
Irradiance and Treatment Area
Irradiance (power density) determines how quickly the panel delivers a therapeutic dose. Measured in milliwatts per square centimetre (mW/cm²) at a specified treatment distance.
Minimum effective irradiance: Most clinical research uses 20–100 mW/cm² at the treatment site. Panels providing less than 20 mW/cm² at the recommended treatment distance require very long session times to achieve therapeutic doses and may not be clinically practical.
Recommended irradiance for clinical effectiveness: 50–150 mW/cm² at 15–30cm distance allows 10–20 minute sessions to deliver therapeutic doses of 3–50 J/cm².
Key evaluation point: Always ask for irradiance measurements at specified distances (e.g., 10cm, 15cm, 30cm). Many manufacturers quote peak irradiance at 0–5cm distance, which is unrealistically close for practical use.
Treatment Coverage
Panel size determines how much body area can be treated in a single session. Consider your primary treatment goals:
- Targeted treatment (face, neck, specific joints): A smaller panel (30×30cm) may be sufficient.
- Upper body or lower body treatment: Medium panels (30×60cm to 45×90cm) provide practical coverage.
- Whole body treatment: Large panels (90×120cm or larger) or multiple panels configured side-by-side.
EMF and Safety
All electrical devices generate electromagnetic fields. The concern with red light therapy panels is primarily near-field EMF — the EMF levels at the distance you stand from the panel during treatment.
Look for panels with independently tested and published near-field EMF measurements. Acceptable near-field EMF at 15cm: below 1 milligauss. Many premium panels now advertise "near-zero EMF" or "flicker-free" operation — verify these claims with third-party test data rather than manufacturer assertions.
All panels sold in Australia should comply with the Australian Communications and Media Authority (ACMA) standards for electromagnetic compatibility. Verify Australian compliance marking (RCM mark) on any panel you purchase.
Panel Size and Coverage
| Panel Size | Best For | Session Type |
|---|---|---|
| Small (15×30cm) | Face, neck, targeted joints | Localised treatment |
| Medium (30×60cm) | Upper body, lower body sections | Regional treatment |
| Large (45×120cm) | Torso + limbs, most body areas | Whole body (partial) |
| XL / Tower (60×180cm+) | Whole body from single position | Full body treatment |
| Multiple panel setup | Whole body simultaneous coverage | Full body treatment |
Cost Guide: Australia
- Entry-level small panel (30×30cm, 660nm+850nm): AUD $200–$500
- Mid-range medium panel (30×60cm, dual wavelength, good irradiance): AUD $500–$1,200
- Premium large panel (45×90cm+, low EMF, third-party tested): AUD $1,200–$3,000
- XL full-body panel or tower unit: AUD $2,500–$6,000
- Medical/commercial grade (multiple wavelengths, clinical specification): AUD $5,000–$20,000+
Panel Comparison Considerations
When comparing panels, request or verify the following from any supplier:
- Spectral output report from an independent laboratory (confirms wavelengths are as claimed)
- Irradiance measurements at 15cm and 30cm from independent testing
- Near-field EMF measurements (mG) at 15cm
- Flicker rate measurements (for eye safety and photosensitive users)
- RCM or equivalent Australian compliance marking
- LED rated lifespan (minimum 50,000 hours for quality panels)
- Warranty terms (minimum 2 years for components, 3 years for reputable brands)
Avoid panels that cannot provide independent test data for irradiance and spectral output. Self-reported specifications from manufacturers are not reliable without third-party verification.
Frequently Asked Questions
How long should a red light therapy session be?
10–20 minutes per treatment area at appropriate irradiance (50–100 mW/cm²) delivers a therapeutic dose. See: Red Light Therapy Explained for detailed protocol guidance.
How often should I use red light therapy?
3–5 sessions per week for most therapeutic applications. See: How Often Should You Use Red Light Therapy?
Can I use red light therapy and sauna together?
Yes. Many practitioners combine red light therapy with sauna for synergistic recovery benefits. Some premium sauna installations include NIR panels for this purpose. See: Sauna vs Red Light Therapy.
Is red light therapy safe for eyes?
Never look directly into red light therapy panels during treatment. Use appropriate protective eyewear if treating near the eyes. The panels are safe for indirect exposure at normal treatment distances.
References
- Tripodi N, Feehan J, Husaric M, Sidiroglou F, Apostolopoulos V (2021). The effect of low-level red and near-infrared photobiomodulation on pain and function in tendinopathy: a systematic review and meta-analysis of randomized controlled trials. BMC Sports Science, Medicine and Rehabilitation. PMID: 34391447
- Ferreira LMA, et al. (2026). Photobiomodulation in chronic pain: a systematic review of randomized clinical trials. Frontiers in Integrative Neuroscience. PMID: 41710353
- de Freitas LF, Hamblin MR (2016). Proposed Mechanisms of Photobiomodulation or Low-Level Light Therapy. IEEE Journal of Selected Topics in Quantum Electronics. PMID: 28070154
- Hamblin MR (2017). Mechanisms and applications of the anti-inflammatory effects of photobiomodulation. AIMS Biophysics. PMID: 28748217
This guide is for informational purposes only. All electrical products should bear appropriate Australian compliance markings. Consult a healthcare professional before using red light therapy for specific medical conditions.
